How to develop custom ASP.NET pages with SharePoint 2007 – Full Tutorial

Introduction:
This article is an easy and more detailed version of the SharePoint guidance find under
How to: Perform ASP.NET-Related Development with Visual Studio extensions for Windows SharePoint Services
, SPG article is great but I think the problem is that:

    It is so brief.
    It doesn’t complete the full development cycle with SharePoint (Master pages and security is not taken in consideration).
    It doesn’t touch many expected issues that developer may expire while working with custom ASP.NET SharePoint development.


Technologies and Environment Preparations:
    Visual Studio 2008 SP1 (You will note that there is a visual studio bug that may be solved in later Service Packs but at least it exists in my case).
    Windows server 2008 (I think it doesn’t matter to use windows server 2003 R2).
    WSS 3.0 SP1 (I think it doesn’t matter if you use previous or later versions).
    IIS 7 (Or IIS 6)

    VSeWSS 1.3 CTP
I want to mention that after installing VS 2008 + SP1 you need to download the VSeWSS 1.3(or later) add-in and install it in your machine (where SharePoint & Visual studio are installed).


Assumptions:

User who reads this should have familiarity with Visual studio 2008, ASP.NET, .NET framework assemblies and Namespaces, , Simple XML skills and WSS 3.0
configuration.

    Always when you read my blogs, Gray paragraphs are there for extra illustration, you can safely skip them if you don’t want to understand why we did that or how we did that, so skip them if you are in hurry!!!


Plane:
Before we start, it is good to know what we are going to do, so we will:
    STEP 1 – Create a project using Empty
    STEP 2 – Adding an ASP.NET Web Application project.

STEP 3 – Link the pages from the ASP.NET Web Application project to our Empty project.
    STEP 4 – Do some configurations on the project to allow it works with SharePoint.
    STEP 5 – Handle SharePoint master page issues.


Solution:

  • STEP 1 – Create a project using Empty template

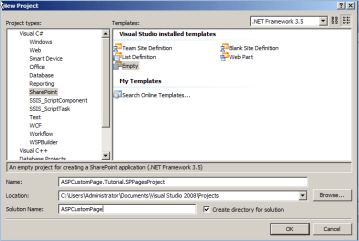

In Visual Studio 2008, create a new project with Empty Project Template; In the Name text box type ASPCustomPage.Tutorial.SPPagesProject and in the Solution Name type ASPCustomPage Press OK.

 Empty project template is one of Visual Studio extensions for Windows SharePoint Services, you need to have VSeWSS installed in your Visual studio 2008, you can also select any other templates rather than Empty and you will get the Quick deploying, packaging and debugging features.

You will be prompted with Select Trust Level Window, Keep it Full Trust (Deploy to GAC), press OK

 When you work with SharePoint pages development; you have two deliverables, Mark up pages and DLLs (Code behind); this window allows you to select where to place your DLLS, placing you DLLs in the GAC makes the assembly accessible from all the web application on the server and gives the assembly a full trust level.

You will have an empty project like this:

  • STEP 2 – Adding an ASP.NET Web Application project.

Right click on the solution and create new project with ASP.NET Web Application project template:

Name the project ASPCustomPages.Tutorial.WebApp, press OK.

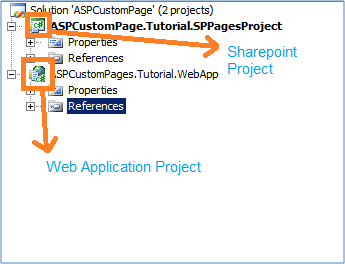

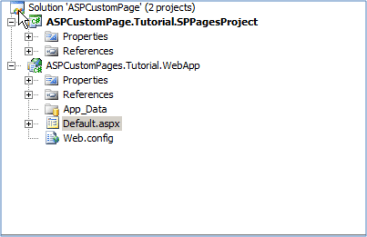

Now, we have got the following:


  • STEP 3 – Link the pages from the ASP.NET Web Application project to our Empty project.

In the ASPCustomPages.Tutorial.WebApp project, delete the Default.aspx file, the App_Data (Optional) folder, and the Web.config file, you will get something like:

Add a new ASPX project item to ASPCustomPages.Tutorial.WebApp project.

Name it :TestPage.aspx, click Add.

Drag and drop a label to the TestPage.aspx for a test, name it “This is my first custom SharePoint page

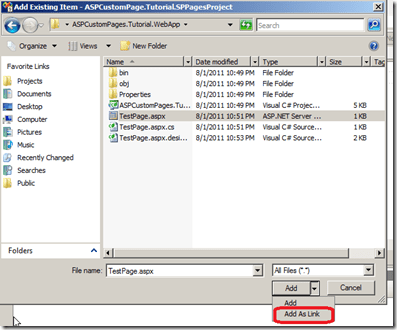

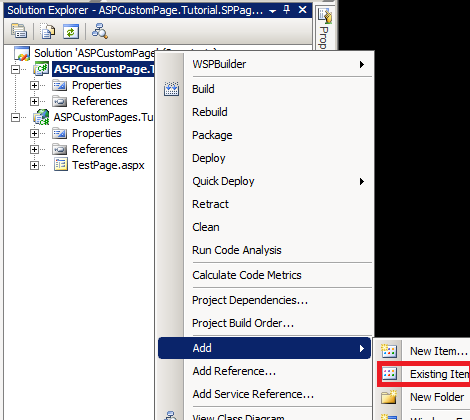

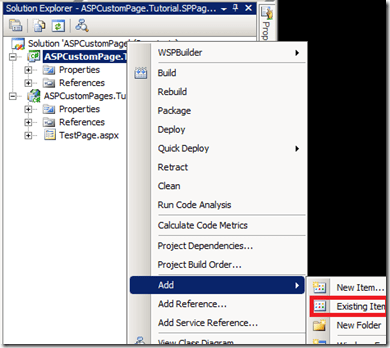

Add the TestPage.aspx file to the ASPCustomPage.Tutorial.SPPagesProject project as a link to the existing item. To link a file from another project, right-click the ASPCustomPage.Tutorial.SPPagesProject project , then click Add Existing Item, navigate to the file you want to add, and then click Add As Link in the Add drop down list, full story are detailed in the figure below:

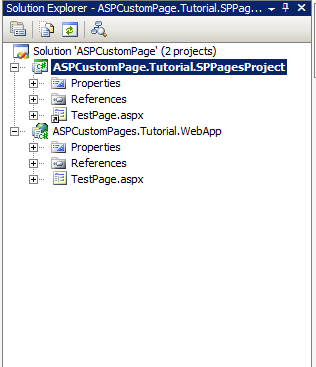

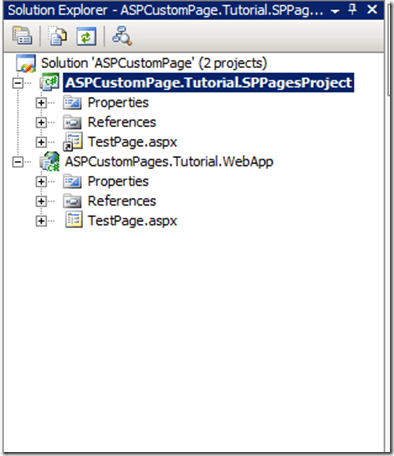

You will get something like:



  • STEP 4 – Do some configurations on the project to allow it works with SharePoint.

Create a new item of type Module (one of templates that are installed for SharePoint) and place the linked TestPage.ASPX file in the new module, name the Module item: FirstPage, click Add

When you install VSeWSS extensions, you will get 5 new project templates and 10 new item templates and Module item template is one of them, check that in the picture below:

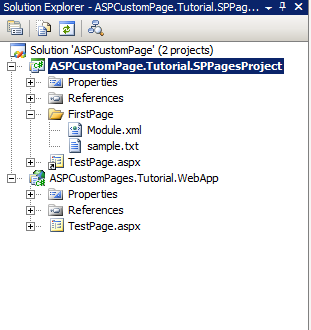

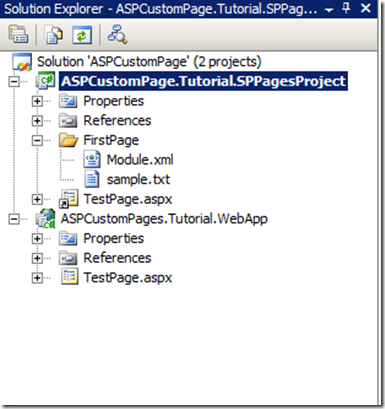

Now, our project looks like:

Delete the sample.txt, Keep Module.xml Drag and drop the “TestPage.aspx Link page” into the FirstPage Folder, in other words make the solution look like the following:image

Edit the Module.xml file to include a File element. Update the Path and Url attributes to the file name of the .aspx file. This deploys the page when the SharePoint solution is deployed, in my simple case; the Module.xml will look like:


Path attribute refers to the reference path of the file in visual studio project and URL refers to the URL of the page in the SharePoint site, in this case our page will be deployed here http://ServerName:port/TestPage.aspx

<?xml version="1.0" encoding="utf-8"?>

<Elements Id="b707b5eb-4b48-4a90-98e7-e62f474559f8" xmlns="http://schemas.microsoft.com/sharepoint/">

  <Module Name="FirstPage">

    <File Path="TestPage.aspx" Url="TestPage.aspx" />

  </Module>

</Elements>

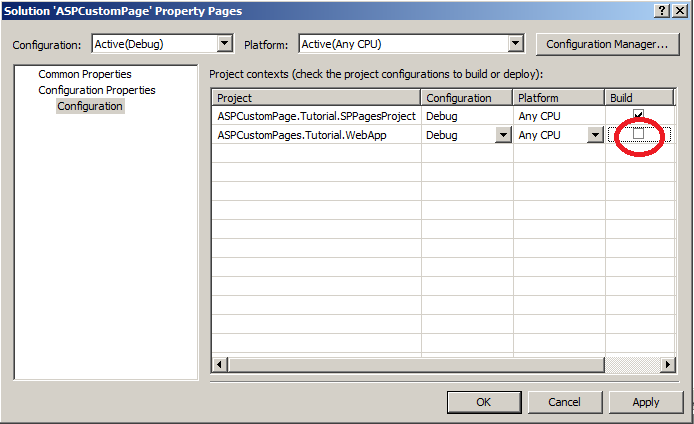

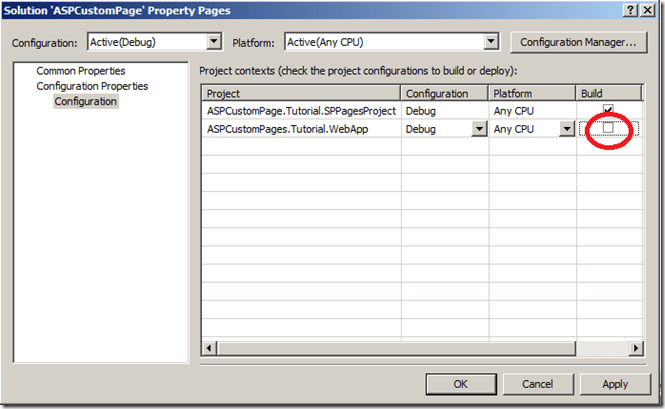

Right click Solution || Properties || Configuration Properties, clear the Build for the ASPCustomPages.Tutorial.WebApp check box, see the pictures below..

Solution Configuration manager can be accessed by right clicking on the solution and click on properties (as illustrated below).
Clear the build will prevent Visual studio from generating DLLs for this project, so Why??? This action is because we only use this project for ease the design and drag/drop controls… So we don’t need the code behind you will see how…

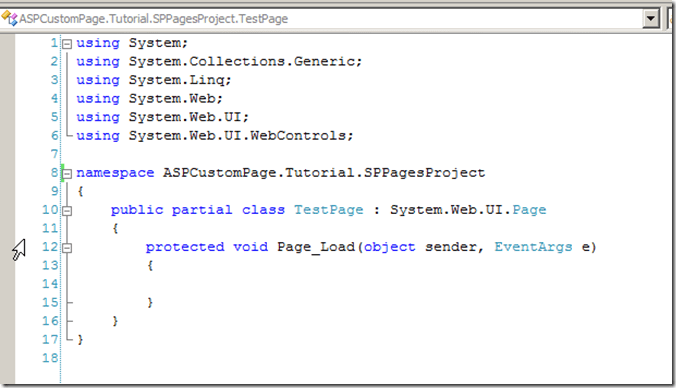

Open the linked code-behind file from the ASPCustomPage.Tutorial.SPPagesProject project and change the namespace from ASPCustomPages.Tutorial.WebApp to ASPCustomPage.Tutorial.SPPagesProject , in other words do the following on TestPage.aspx.cs and TestPage.aspx.designer.cs:image






This will tell the compiler to compile the code into ASPCustomPage.Tutorial.SPPagesProject project.


Now, build the project, check that there is no errors.

Open the markup of the file from the ASPCustomPages.Tutorial.WebApp project, in the page directives; remove the CodeBehind attribute from the markup, remove AutoEventReciver and then edit the Inherits attribute to match the assembly information for the ASPCustomPage.Tutorial.SPPagesProject  project.

Don’t modify anything else (rather than the Page directive), keep everything as default .

Your page directive will look exactly like this:

<%@ Page Language="C#"  Inherits="ASPCustomPage.Tutorial.SPPagesProject.TestPage,ASPCustomPage.Tutorial.SPPagesProject, Version=1.0.0.0, Culture=neutral,PublicKeyToken=e6805455ca617aa0" %>

Be careful! Your DLL will have different PublicKeyToken! So don’t try to copy it.

Normally; every signed assembly has these attributes you can use a tool called Red Gate’s .NET reflector, this software gives you these details about any signed assembly, I think you also notoced that the ASPCustomPage.Tutorial.SPPagesProject is already signed as it is a SharePoint project template.

Markup means the *.ASPX page or the *.ASCX user control, here we use something called 5-parts assembly naming where we use the follow format Namespace.Class , NameSpace, Version, Culture, Public key token.

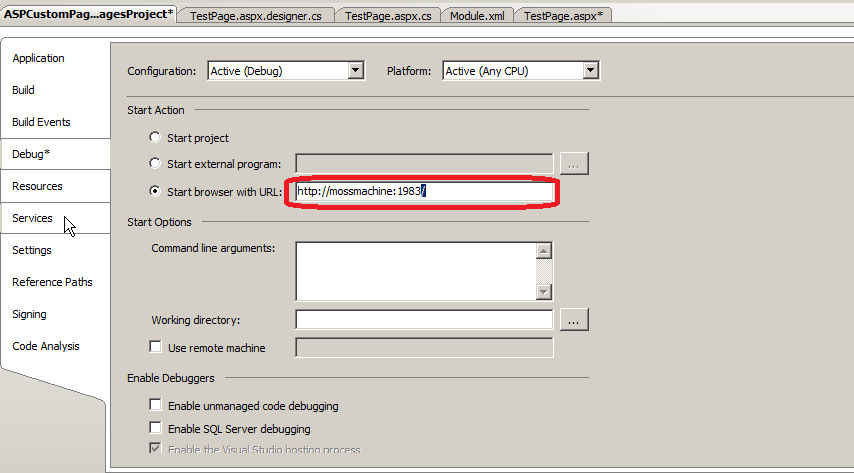

To deploy the solution change the Start browser with URL in the ASPCustomPage.Tutorial.SPPagesProject properties page in the debug pane:image



Add Safe control entry into the web application Web.config of the particular web application it will look like:


<SafeControl Assembly="ASPCustomPage.Tutorial.SPPagesProject, Version=1.0.0.0, Culture=neutral, PublicKeyToken=e6805455ca617aa0" Namespace="ASPCustomPage.Tutorial.SPPagesProject" TypeName="*" Safe="True" />

You can find the Web.config on the C:\inetpub\wwwroot\wss\VirtualDirectories\1983 folder, search on the <SafeControls> element, if you are a sharepoint developer you should do it smoothly.

Also the data (assembly name, version and public key token) here can be get by the reflector software we talked about before.

You can automate the process of adding Safecontrol by adding Safecontrol entry into the manifest.xml file located into the <Solution><assemblies><Assembly><safeControl> check this link for more information

http://msdn.microsoft.com/en-us/library/ms442108.aspx

Deploy the solution…


As you can see from the picture below, you need to write the site collection URL and followed by the Page URL that can be got from the module.xml file

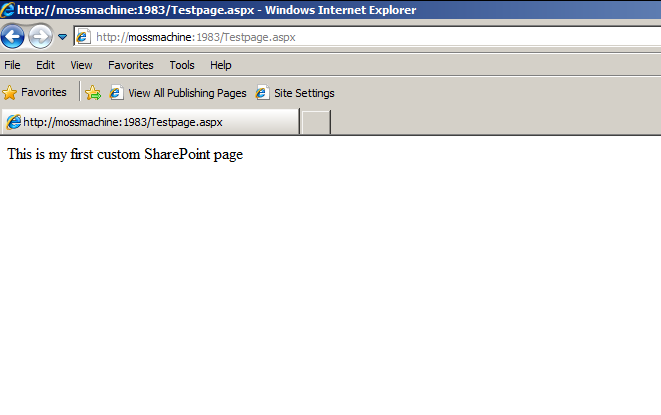

Go to the URL and see the Testpage.aspx like the following:




  • STEP 5 – Handle SharePoint master page issues.

Here we still haven’t done with this! What a bad test page!!!! Where are SharePoint and master pages, Style and Navigation…..? Here SPG stopped and I will start!

As you can see now you can do the design of the page from the TestPage.ASPX in the ASPCustomPages.Tutorial.WebApp and you can do the development from ASPCustomPage.Tutorial.SPPagesProject , I think that’s cool, but not enough…

Add the following Tag to the page header:


For more information about master pages in sharepiont check “http://msdn.microsoft.com/en-us/library/ms476046.aspx&#8221;, but here is the conclusion:
~masterurl/default.master is just a token that returns the current site master page so by default:
~masterurl/default.maste = _Catalogues/masterpage/default.master
, so if the designer creates a new Master page call and call it Something.master and set it as the default master page, then

~masterurl/default.master = _Catalogues/masterpage/Something.master.

If you didn’t get it; go and read the mentioned Microsoft article.

Delete all the body and everything but the page directive, and add content control, the file will look like this:




Full page code is here:

<%@ Page Language="C#"

Inherits="ASPCustomPage.Tutorial.SPPagesProject.TestPage,ASPCustomPage.Tutorial.SPPagesProject, Version=1.0.0.0, Culture=neutral,PublicKeyToken=e6805455ca617aa0"

MasterPageFile="~masterurl/default.Master"%>

<asp:Content ID="Content1" ContentPlaceHolderID="PlaceHolderMain" runat="server">

        <asp:Label ID="lblTest" runat="server"

            Text="This is my first custom SharePoint page"></asp:Label>

</asp:Content>

SharePoint master page contains a place holder to hold content, so any page that needs to go under SharePoint master page need to have at least 1 asp:content control that has a ContentPlaceHolder property set to PlaceHolderMain, everything is configurable in SharePoint in terms of names, number and location of place holders but this is the default..

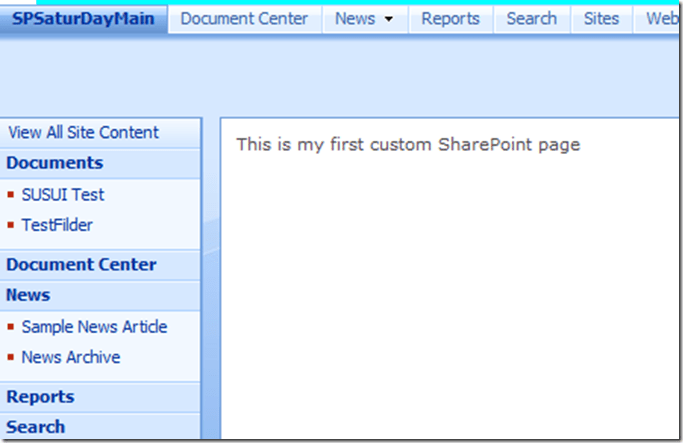

Deploy the solution again, you will have something like this:


Cooooooool, but not enough why??? Try to go to the design mode of the TestPage.aspx in the visual studio… Visual studio is struggling now coz he tries to know where is the hell ~masterurl/defaul.master, so here I will do some work around to fix that…

The Master Page file ‘~masterurl/default.master’ cannot be loaded….. What can we do?!

Add a new folder to the solution call it ~masterurl, then inside this folder add new master page call it default.Master.

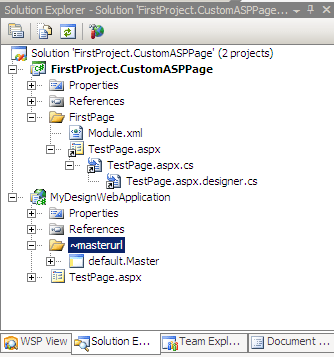

Now the solution looks like:

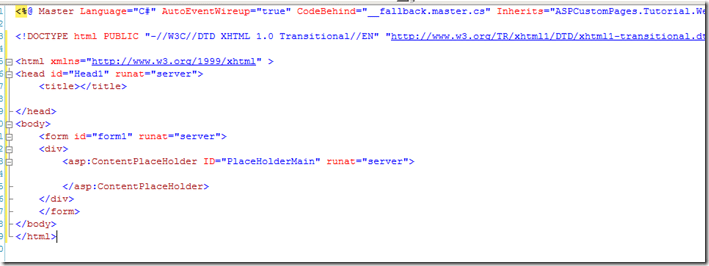

Rename the asp:ContentPlaceHolder1 to PlaceHolderMain and delete the asp:ContentPlaceHolde calls head. So that the default.Master will look like:



<%@ Master Language="C#" AutoEventWireup="true" CodeBehind="__fallback.master.cs" Inherits="ASPCustomPages.Tutorial.WebApp.__fallback" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">



<html xmlns="http://www.w3.org/1999/xhtml" >

<head id="Head1" runat="server">

    <title></title>



</head>

<body>

    <form id="form1" runat="server">

    <div>

        <asp:ContentPlaceHolder ID="PlaceHolderMain" runat="server">



        </asp:ContentPlaceHolder>

    </div>

    </form>

</body>

</html>



It is important to assign ID=PlaceHolderMain because this master page will hold the TestPage while you are in the development time..

Then add another master page to the solution call it __fallback.Master do the same thing you did with the previous master page, it should look like:

__fallback.Master has two underscores at the beginning so be careful.

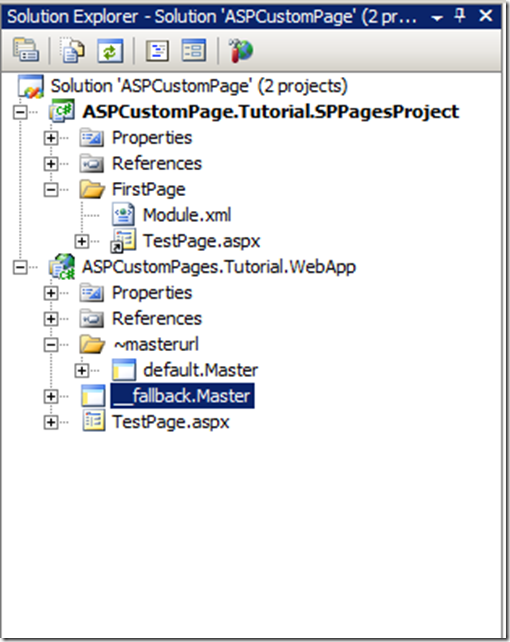

The solution now is look like:

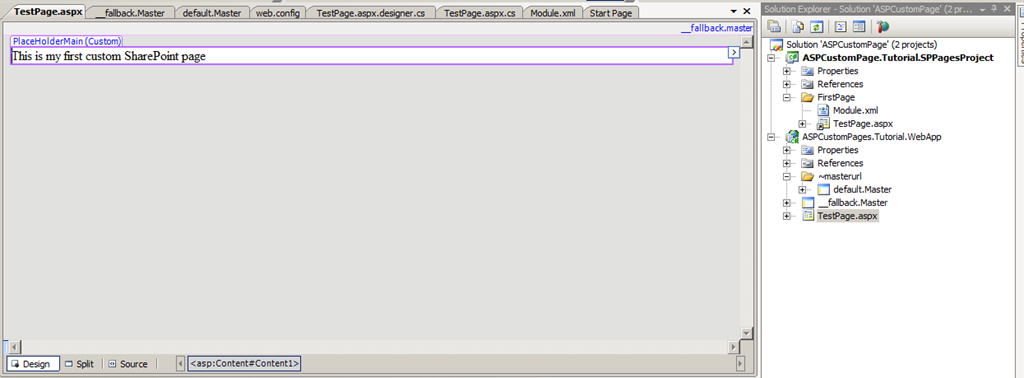

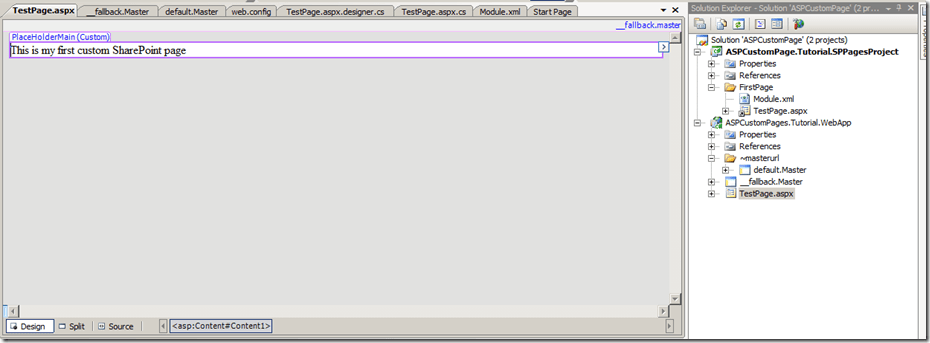

Then –strangely– turn off the visual studio and start it again then open the solution and check the design view of the TestPage.aspx it should works fine, nobody knows why? Also me! It seems it is a little bug in the Visual studio 2008 SP1.


Here we are done with Master page integration….

But now we have only added a label, what if we add a button? If you want to add a button you need to write this code:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;



namespace ASPCustomPage.Tutorial.SPPagesProject

{

    public partial class TestPage : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {



        }



        protected override void OnInit(EventArgs e)

        {

            Button1.Click += new EventHandler(Button1_OnClick);

            base.OnInit(e);

        }



        protected void Button1_OnClick(object sender, EventArgs e)

        {

            lblTest.Text = DateTime.Now.Millisecond.ToString();

        }

    }

}

So you need to register the code in the cs file in order not to be inline code in the ASP.net page:

Remember a very important point here:

Inline code is not recommended in ASPX pages, that means events in controls have to be registered in the OnInit() method of the page like the code above, Inline code will work OK if the master page is not customized but once the designer customize it, it will start making errors

That’s all..

Here is the source Code:

https://skydrive.live.com/embedicon.aspx/BlogRelatedFiles/ASPNETPagesSharepoint?cid=90a89f9f2b7f4d27&sc=documents

Advertisements
Posted in SharePoint - How To | Tagged , , , | 7 Comments

SharePoint designer bug when try to edit Default.aspx page

soap:ServerServer was unable to process request. —> A Web Part or Web Form Control on this Web Part Page cannot be displayed or imported because it is not registered as safe on this site. You may not be able to open this page in an HTML editor that is compatible with Microsoft Windows SharePoint Services, such as Microsoft Office SharePoint Designer. To fix this page, contact the site administrator to have the Web Part or Web Form Control configured as safe. You can also remove the Web Part or Web Form Control from the page by using the Web Parts Maintenance Page. If you have the necessary permissions, you can use this page to disable Web Parts temporarily or remove personal settings. For more information, contact your site administrator.

clip_image001

Posted in SharePoint - Errors | Tagged , , , , , | Leave a comment

Multilingual support in SharePoint 2007 – Product language VS Language template packs

    There is two easy and important concepts in SharePoint 2007 that we always use but sometimes we don’t know the exact difference between Product language and language template pack:

  • Product language

Which means the language that you will administer your farm with (Central Administration interface language), when you buy your version of SharePoint DVD; you specify the SharePoint product language, note that:

    1. ONLY ONE language can be used to administering your farm.
    2. If you want to change the language of the farm, you have to un-install and re-install SharePoint from all the farm servers.
    3. The product language doesn’t have to be same as the hosting Windows server language (adding the necessary language support from Controls panel—> Regional and Language Settings will be enough for this purpose).
    4. You may find problems when dealing with stsadm command with multilingual websites; the messages appear as rubbish in the command prompt(CMD doesn’t support Arabic messages ), check http://jamilhaddadin.blogspot.com/2008/07/stsadm-for-non-english-sharepoint.html to solve this problem

  • Language Template packs

It is a package you download for free from Microsoft web site, it enables you to create a site collections, sites and subsites in languages different than the product language (i.e. when you install English SharePoint product language in your farm then you want to create an Arabic site collection; you need to install the Arabic language template pack ), note that:

    1. Windows Regional Language and Settings are also needed, (i.e. if you want to install the Arabic language pack template on your farm; then you need to install the Windows Arabic support from the windows CD)
    2. The business administration (administration under site settings in each site) is in the same language of the site language. (i.e. if we have Arabic product language and we create a French site; the site setting menus of this site will be in French ).
    3. If you create an Arabic site; then the  site tool bar, navigation bars, lists, and column headings appears in Arabic.
    4. Always after installing the Language template packs, you need to re-run the SharePoint products and technologies wizard to setup the new language configuration.
    5. You can remove this language template pack from add/remove programs in control panel
    6. My site: You can enable user to select my site language on the first creating time. This is done by checking “Allow user to choose the language of there personal site” from the SSP.
    7. Some error messages, dialog boxes and notifications may appears in English because Microsoft .NET Framework, Microsoft Windows Workflow Foundation, Microsoft ASP.NET, and Microsoft SQL Server 2005 are limited in localization.

Also Note that:

The above comparison applies to both WSS 3.0 and MOSS 2007.

To download Arabic language pack you can go to: http://www.microsoft.com/downloads/details.aspx?displaylang=en&FamilyID=36ee1bf0-652c-4e38-b247-f29b3eefa048, you will see the following:







clip_image001



    Then you should select the “Arabic” from the dropdown list then press “Change” button you will get:





    clip_image002





    Then you can download it, By pressing “تنزيل”!

Posted in Sharepoint - Administration | Tagged , , , , , , | Leave a comment

Slipstream your SharePoint 2007 with Service pack 1

clip_image002

  • delete the Wsssetup.dll file

  • You are done

Refer to:

http://technet.microsoft.com/en-us/library/cc261890(TechNet.10).aspx

Posted in Sharepoint - Administration | Tagged , , , , , | Leave a comment

Feature ‘1511a6c7-4e7f-449a-949d-2e3099560c97’ for list template ‘101’ is not installed in this farm. The operation could not be completed.

  1. Go to 12\Template\Features.
  2. Press Ctrl+F and search by “word or phrase in the file”.
  3. Put your GUID which is 1511a6c7-4e7f-449a-949d-2e3099560c97 In our case
  4. The search will return one or two files, assume that it found the GUID in the following file customlist.xml
  5. Use the STSadm.exe command:
stsadm.exe -o installfeature -name customlist -force

6. You are done.

Posted in Errors | Leave a comment

Feature ‘1511a6c7-4e7f-449a-949d-2e3099560c97’ for list template ‘101’ is not installed in this farm. The operation could not be completed.

  1. Go to 12\Template\Features.
  2. Press Ctrl+F and search by “word or phrase in the file”.
  3. Put your GUID which is 1511a6c7-4e7f-449a-949d-2e3099560c97 In our case
  4. The search will return one or two files, assume that it found the GUID in the following file customlist.xml
  5. Use the STSadm.exe command:
stsadm.exe -o installfeature -name customlist -force

6. You are done.

Posted in SharePoint - Errors | Leave a comment

Configuring Gmail account with WLM

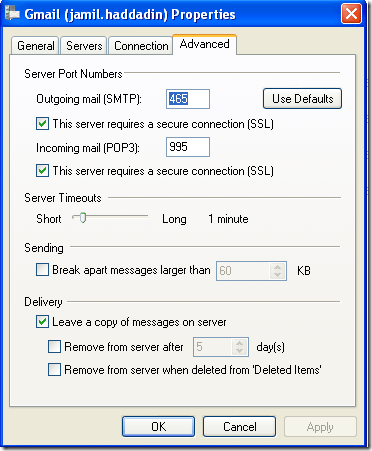

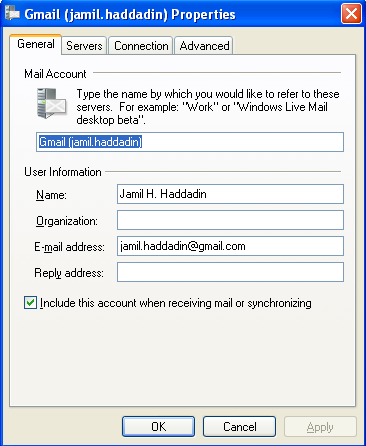

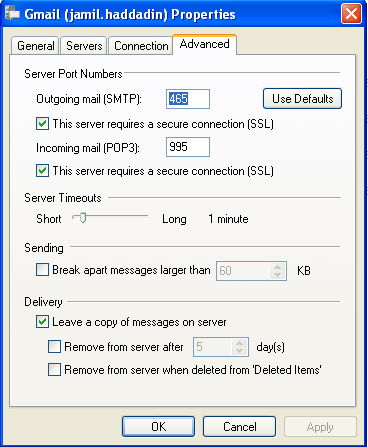

When u want to configure a Gmail Email account in a mobile, outlook or WLM u should provide the following data:

clip_image001

clip_image002

clip_image003

Important Note:

Some times if you have a proxy that blocks the Gmail Port, it will not works with you.

Posted in General Tips | Tagged | Leave a comment

How to get Rid of the Beep in the Vmware 6.0

Sometimes –while you are working on VMWare- and listening to some music; you got a very loud beeps that make you crazy! the solution is doing the following:

    • Go to the following path:

    C:\Documents and Settings\<windows User>\Application Data\Vmware. (this path may vary according to the windows version that you are using)

  • Open the file called preferences.ini
  • Add the following line:
    Mks.noBeep = "TRUE"

    (Be carful, it is case sensitive)


    Note:

    this works for sure on VMware workstation 5.0 and 6.0 versions.

Posted in Technical Tips | Tagged , | Leave a comment
